TN02 SERIES LED FLOODLIGHT FOR TUNNEL & STADIUM

LED floodlight description

Introducing our new floodlight, designed for enhanced energy efficiency and long-lasting performance. Road tunnels represent a critical area where ensuring traveler safety and minimizing accidents is paramount to maintaining smooth traffic flow.

Our specialized LED light source, tailored for street and road tunnel illumination, ensures uniform beam distribution and provides high visual comfort. By minimizing glare, it enables travelers to maintain a steady speed, contributing to safer and more efficient journeys.

Key features

  • Used a die-cast aluminum radiator for efficient heat dissipation and durable protection.
  • High-performance LEDs, they emit comfortable, radiation-free light.
  • The combination of aluminum circuit boards and silicone gel ensures dustproof and moisture-proof properties.
  • Backed by our brand’s drive, they provide a solid guarantee for efficient operation.

Specification for floodlight

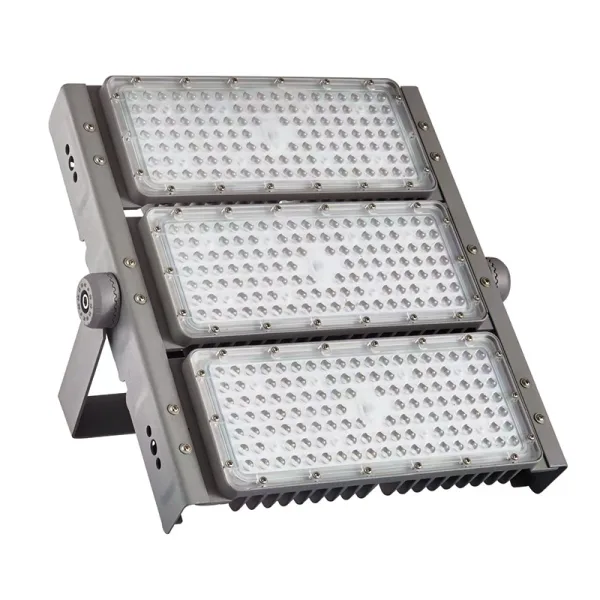

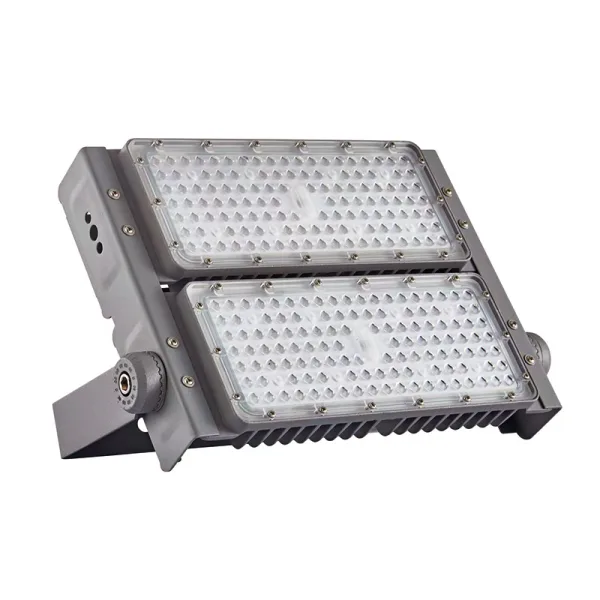

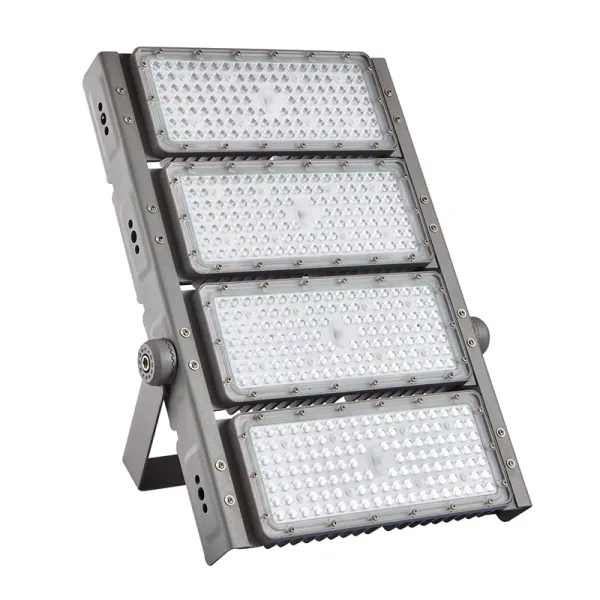

Model TN02-100W TN02-200W TN02-300W TN02-400W TN02-500W
Watt power 100W 200W 300W 400W 500W
LED light source SMD2835*120PCS SMD2835*240PCS SMD2835*360PCS SMD2835*480PCS SMD2835*600PCS
Lighting effect 150LM/W 150LM/W 150LM/W 150LM/W 150LM/W
Color temperature 3000K-7000K 3000K-7000K 3000K-7000K 3000K-7000K 3000K-7000K
LED lamp life 50000H 50000H 50000H 50000H 50000H
RA Ra75+/-5 Ra75+/-5 Ra75+/-5 Ra75+/-5 Ra75+/-5
Working voltage AC100V-277V AC100V-277V AC100V-277V AC100V-277V AC100V-277V
Power Factor 0.95 0.95 0.95 0.95 0.95
IP Level IP66 IP66 IP66 IP66 IP66
IK Level IK08 IK08 IK08 IK08 IK08
Working temperature -20℃~60℃ -20℃~60℃ -20℃~60℃ -20℃~60℃ -20℃~60℃
Installation height 6-8M 8-10M 8-10M 10-12M 10-12M
Material Aluminum+PMMA Aluminum+PMMA Aluminum+PMMA Aluminum+PMMA Aluminum+PMMA
Warranty 5 year 5 year 5 year 5 year 5 year

More Details About Floodlight

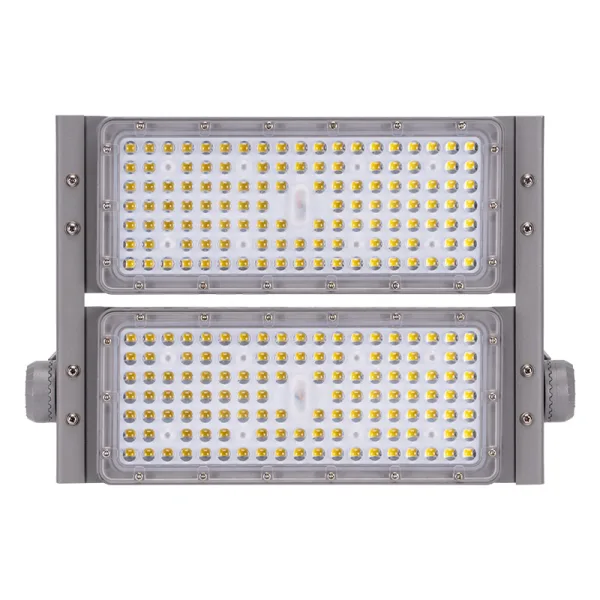

The TN02 is the latest series of modular tunnel lights, offering the flexibility of combining multiple modules. With power options ranging from 100W to 500W, it can also be tailored to meet specific customer requirements.



Featuring a stable shell design, easy installation, and lightweight construction to minimize shipping costs, the TN02 delivers exceptionally high brightness, achieving a luminous efficacy of up to 150lm/w in the final product.

Utilizing cutting-edge 3030 LED light sources, the TN02 boasts characteristics such as superior brightness, high color rendering, minimal light decay, and consistent, soft, and comfortable lighting, making it the preferred choice for outdoor high-end lighting fixtures.

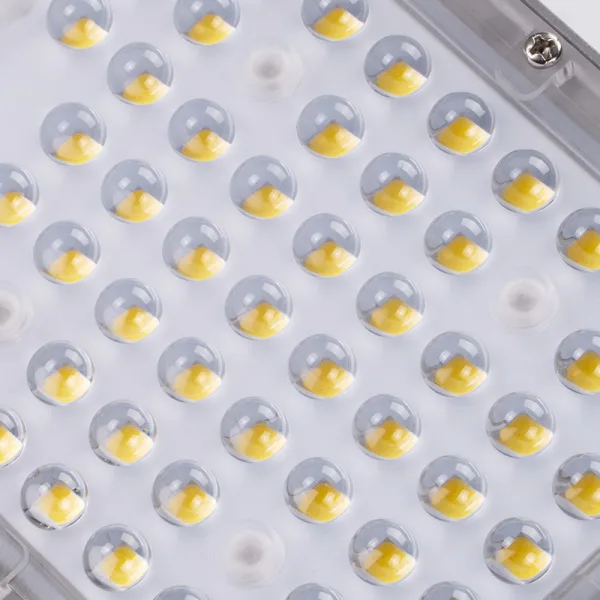

The inclusion of state-of-the-art PMMA optical lenses ensures excellent light transmission, uniform illumination, consistent light distribution, and maximized coverage area.

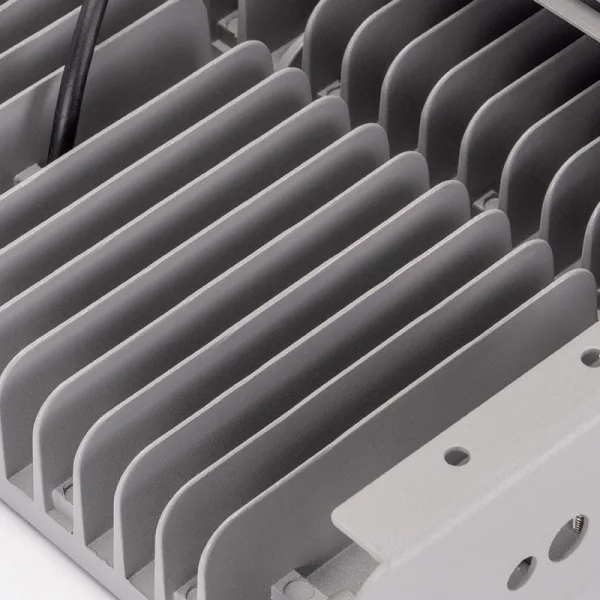

Crafted from aerospace-grade aluminum profiles, the radiator features an integrated design with robust convection capabilities, providing exceptional heat dissipation and effectively regulating the temperature of the LED chips, thereby extending their lifespan. Stainless steel screws and high-strength brackets enhance product stability.



With an IP66 waterproof rating and engineering-grade plastic wiring that is resistant to aging, UV radiation, and moisture, the TN02 offers superior durability and reduces maintenance costs. Its high heat shrinkage ratio ensures long-term reliability.

Equipped with a wide-voltage driver and fully enclosed aluminum alloy housing for potting and encapsulation, the TN02 provides comprehensive protection against short circuits, overcurrent, overvoltage, and overheating. The built-in active power factor correction (PFC) function ensures resilience against adverse weather conditions, making it resistant to rain and lightning strikes for added security.
