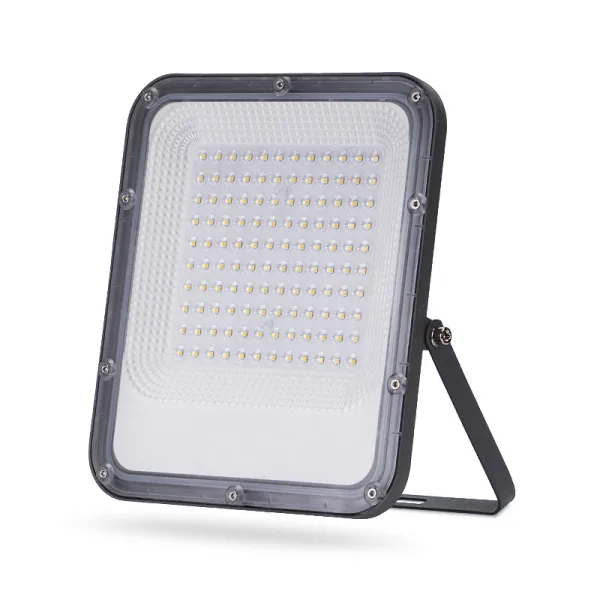

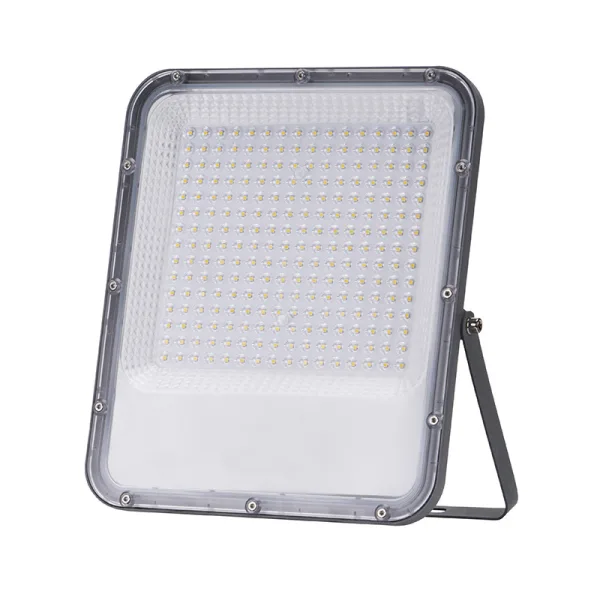

Slim Flood Light IP65 Waterproof Outdoor Multi-Watt LED Fixture

Slim Flood Light description

The FL-YH floodlight is an excellent option for home use, offering both efficiency and durability. It utilizes an innovative linear design and chip-scale package LEDs to maximize its output while maintaining a sleek and compact profile. With a range of styles available, from 3600 to 24000 lumens, and an impressive efficacy of up to 120 lumens per watt, it provides ample illumination for various lighting needs. Additionally, its ability to be installed at heights of up to 15 meters ensures versatility in placement.

Key features

  • High-quality die-cast aluminum shell, providing exceptional durability and corrosion resistance;
  • High-transmittance optical lens ensures uniform and effective lighting, enhancing visibility and ambiance;
  • Equipped with high lumen LED chips, it delivers bright, color-rich illumination that lasts;

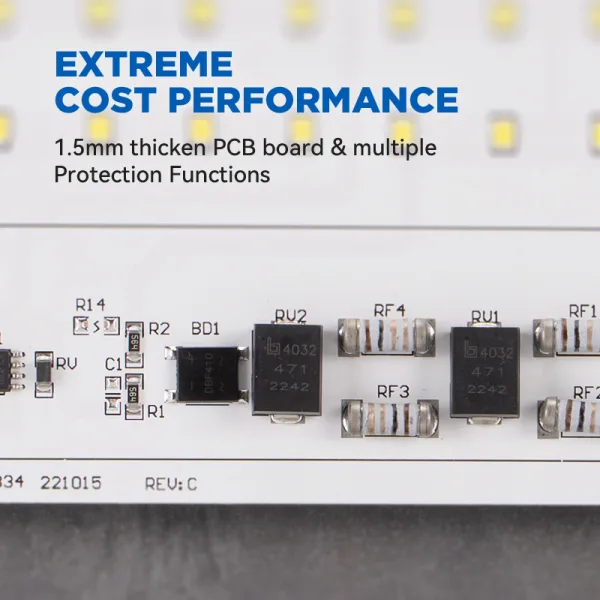

  • Anti-surge drive and fully enclosed aluminum alloy shell offer comprehensive electrical protection;

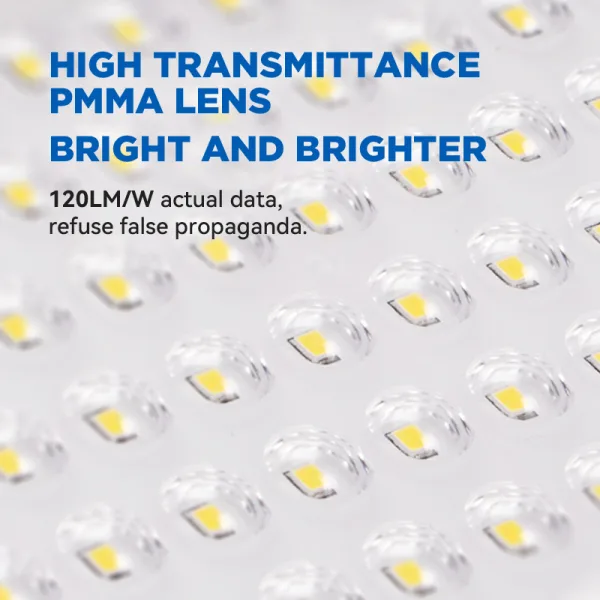

  • New PMMA lens design, 120° beam angle, wider lighting range;
  • Easy installation and maintenance-free operation;

Specification for Slim Flood Light

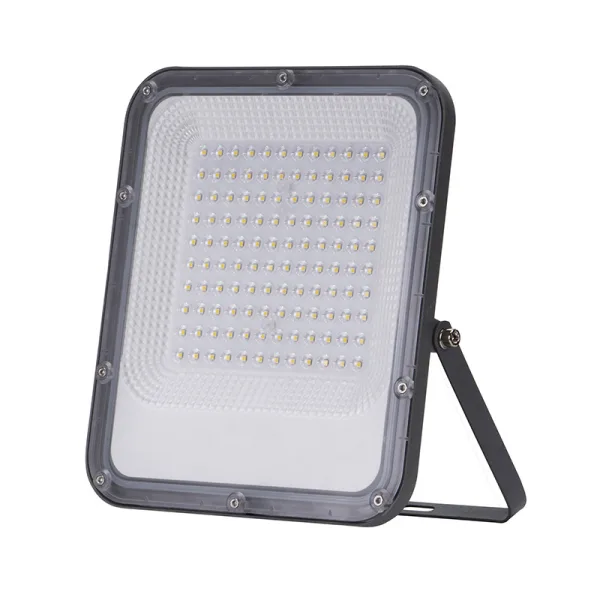

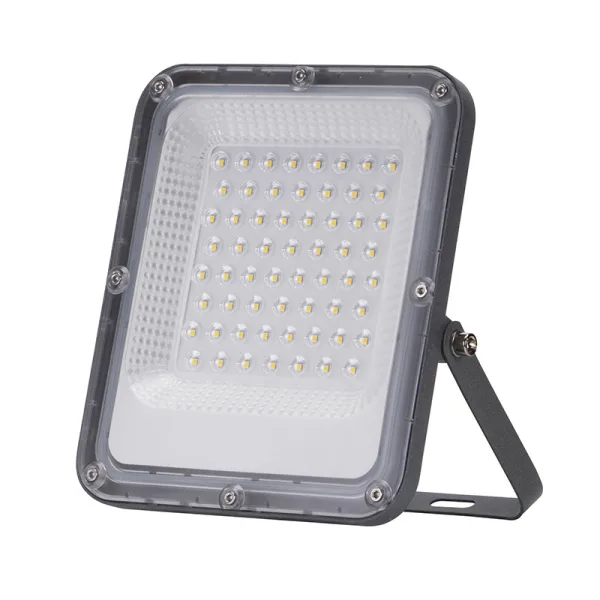

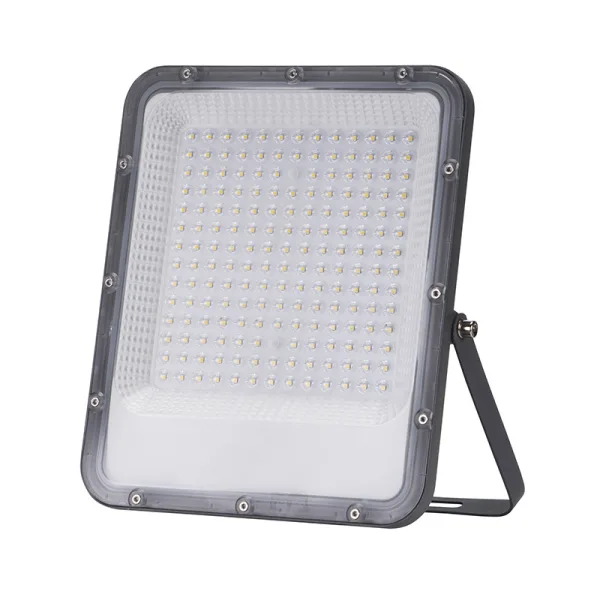

Model FL01-30W FL01-50W FL01-100W FL01-150W FL01-200W
Power watt 30W 50W 100W 150W 200W
LED light source SMD 2835*42PCS SMD 2835*60PCS SMD 2835*120PCS SMD 2835*182PCS SMD 2835*240PCS
Lumen(max) 120LM/W 120LM/W 120LM/W 120LM/W 120LM/W
CCT 5000-6000K 5000-6000K 5000-6000K 5000-6000K 5000-6000K
LED lamp life 30000H 30000H 30000H 30000H 30000H
Surge protection 3500V 3500V 3500V 3500V 3500V
RA ＞80 ＞80 ＞80 ＞80 ＞80
Input Voltage AC200-265V,60Hz, PF>0.9 AC200-265V,60Hz, PF>0.9 AC200-265V,60Hz, PF>0.9 AC200-265V,60Hz, PF>0.9 AC200-265V,60Hz, PF>0.9
IP Level IP65 IP65 IP65 IP65 IP65
IK Level IK08 IK08 IK08 IK08 IK08
Working temperature -20℃-60℃ -20℃-60℃ -20℃-60℃ -20℃-60℃ -20℃-60℃
Product size 187*168*28mm 230*205*35mm 275*235*30mm 310*280*40mm 330*280*35mm
Material Die cast aluminum+PMMA Die cast aluminum+PMMA Die cast aluminum+PMMA Die cast aluminum+PMMA Die cast aluminum+PMMA
Warranty 3 years 3 years 3 years 3 years 3 years

More details about Slim Flood Light



The FL01 floodlight represents a remarkable solution for outdoor lighting requirements, boasting an array of features tailored for optimal performance and longevity. Its utilization of cutting-edge LED technology, coupled with a cost-effective linear design, ensures an impressive balance between brightness and energy efficiency. With lumens ranging from 3600 to 24000 and a peak efficacy of 120lm/w, this floodlight offers versatility to cater to diverse lighting needs while minimizing power consumption.

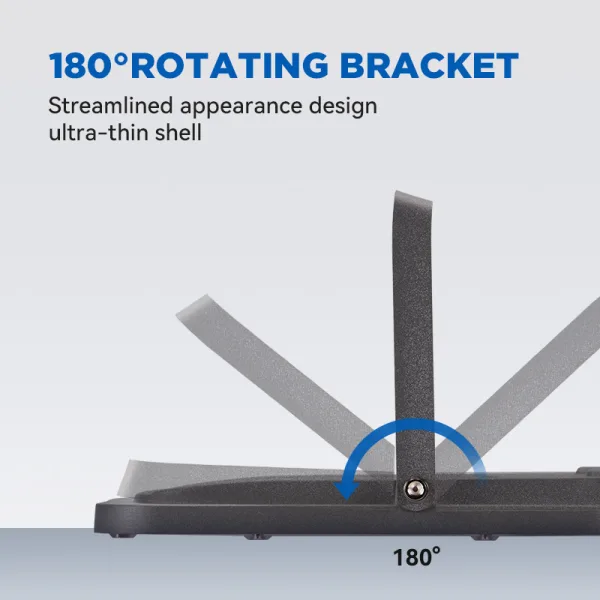

Crafted from aviation-grade die-cast aluminum, the FL01 floodlight guarantees durability and resilience against the elements, making it suitable for a wide range of outdoor applications. Its sleek and streamlined design not only adds a touch of elegance but also enhances its functionality, with a 180° rotating bracket enabling adaptable positioning for various lighting scenarios.

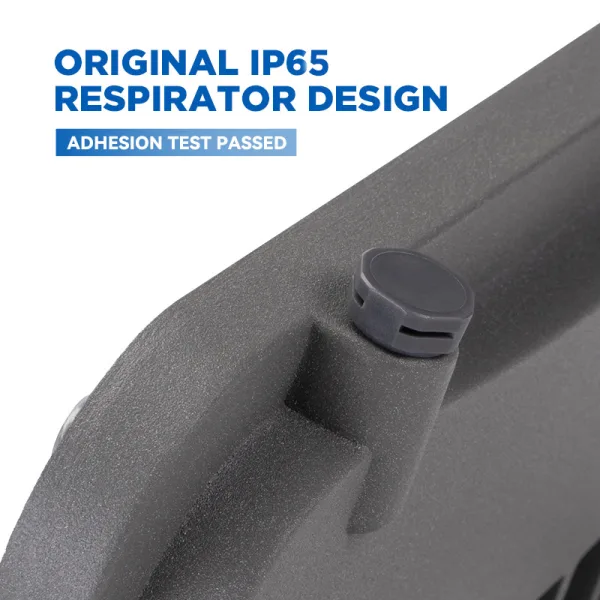

Furthermore, the floodlight’s IP65 waterproof rating and corrosion-resistant construction provide assurance of its ability to withstand the rigors of outdoor environments, ensuring reliable performance even in adverse weather conditions. The inclusion of comprehensive protection features, such as safeguards against overvoltage, overcurrent, short circuits, and overheating, underscores its commitment to durability and safety.



In summary, the FL01 floodlight emerges as a premium choice for those seeking a blend of performance, efficiency, and durability in their outdoor lighting solutions. Its superior design, coupled with robust construction and advanced features, makes it a standout option for enhancing visibility and security in residential, commercial, and industrial settings alike.
